B10 female 3+2-pole, Push-in, 800/500 V, 16 A
| Artnr: | 70MH-EB3U2-EP05020 |
| Gewicht: | 0.061 kg |
| Land van oorsprong: | CN |
Beschikbaar
Beschrijving
B10
Female
3+2-pole
Push-In terminals
Technical data will be only guaranteed with Murrelektronik components.
Please use wire end ferrule.
Female
3+2-pole
Push-In terminals
Technical data will be only guaranteed with Murrelektronik components.
Please use wire end ferrule.
Technische data
Technical Data
| Operating voltage | 830/500 V AC/DC |
|---|---|
| Rated surge voltage | 8.0/6.0 kV |
| Operating current | 16 A |
| No. of poles | 3 + 2 + PE |
| Mating cycles | min. 500 |
| Connection | Push-In terminals |
| Connection cross section | 0.14...2.5 mm² (AWG 26...13) |
| Stripping length | 8...10 mm |
| Over voltage category | III |
Cable
| Current load capacity | see derating curve |
|---|
General data
| Material contact | Brass |
|---|---|
| Material contact surface | Ag |
| Pollution Degree | 3 |
| Temperature range | -40...+125 °C |
| Material contact carrier | PA |
| Flammability class | V-0 (acc. to UL 94) |
| Size | B10 |
| Type | Female |

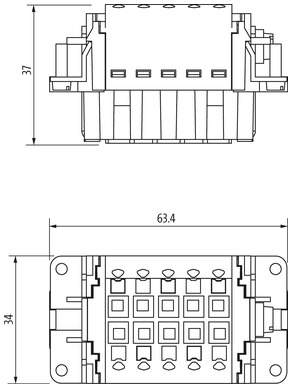

| Dimensions H×W×D | 37×34×63.4 mm |
Classifications
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-6.1 | 27261204 |
| ECLASS-7.0 | 27440205 |
| ECLASS-8.0 | 27440205 |
| ECLASS-9.0 | 27440205 |
| ECLASS-10.1 | 27440205 |
| ECLASS-11.1 | 27440205 |
| ECLASS-12.0 | 27440205 |
| ETIM-5.0 | EC000438 |
Commerciële gegevens
| Douane tarief nummer | 85389099 |
|---|---|
| GTIN | 4048879664448 |
| Verpakkingseenheid | 1 |
