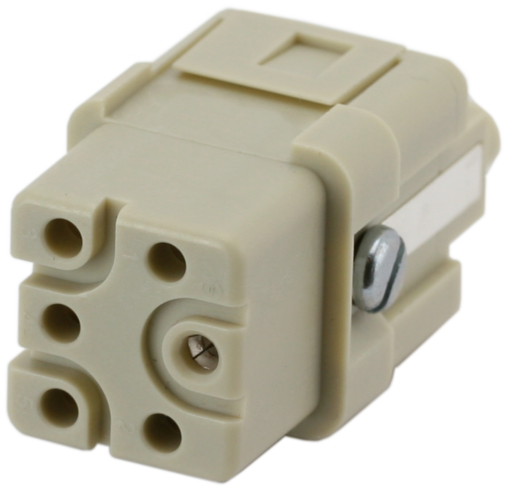

A3 female 5-pole, crimp t., 400 V, 16 A
| Artnr: | 70MH-EB005-AC02020 |
| Alternatieve artikelen: | 70MH-EB007-AC01020 |
| Gewicht: | 0.018 kg |
| Land van oorsprong: | CZ |
Beschikbaar
Beschrijving
A3
Female
5-pole
Crimp
Technical data will be only guaranteed with Murrelektronik components.
Female
5-pole
Crimp
Technical data will be only guaranteed with Murrelektronik components.
Technische data
Electrical data | Supply
| Operating voltage AC per power contact max. | 400 V |
|---|---|
| Operating voltage AC per signal contact max. | 230 V |
| Operating voltage DC per power contact max. | 400 V |
| Operating voltage DC per signal contact max. | 230 V |
| Operating current | 16 A |
Installation
| AWG number min. | 20 |
|---|---|
| AWG number max. | 11 |
| Connection cross section min. | 0,5 mm² |
| Connection cross section max. | 4 mm² |
Installation | Connection
| Wire insulation diameter min. | 4,6 mm |
|---|---|
| Connection | Crimp |
| Gender | female |
| Mating cycles min. | 500 |
Installation | Pin assignment
| No. of poles | 5 + PE |
|---|
Device protection | Electrical
| Rated surge voltage | 6 kV |
|---|---|
| Insulation resistance min. | 100 MΩ |
| Material group (IEC 60664-1) | IIIa |
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | III |
| Overvoltage category (EN 60950-1) | III |
Mechanical data
| Holding force min. | 100 N |
|---|---|
| Pulling force max. | 100 N |
Mechanical data | Material data
| Coating contact | versilbert, vergoldet |
|---|---|
| Material contact | Brass |
| Material contact carrier | PC GF |
Mechanical data | Mounting data
| Size | A3 |
|---|---|
| Height | 40,1 mm |
| Width | 21 mm |
| Depth | 21 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 125 °C |
| Climatic category (EN IEC 60068-1) | 40/125/10 |
Conformities, approvals, certificates
| Combustibility class (UL94) | V-0 |
|---|
Commerciële gegevens
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-6.1 | 27261204 |
| ECLASS-7.0 | 27440205 |
| ECLASS-8.0 | 27440205 |
| ECLASS-9.0 | 27440205 |
| ECLASS-10.1 | 27440205 |
| ECLASS-11.1 | 27440205 |
| ECLASS-12.0 | 27440205 |
| ETIM-5.0 | EC000438 |
| Douane tarief nummer | 85366990 |
| GTIN | 4048879637619 |
| Verpakkingseenheid | 1 |
