B10 Hood, low profile, IP65
Single locking lever, side entry M20
| Artnr: | 70MH-GTENL-A02B000 |
| Alternatieve artikelen: | 70MH-GTENL-A02C000 |
| Gewicht: | 0.147 kg |
| Land van oorsprong: | CZ |
Leveringsdatum op aanvraag
Beschrijving
B10
Hood (low)
Single locking lever
IP65
Technical data will be only guaranteed with Murrelektronik components.
Hood (low)
Single locking lever
IP65
Technical data will be only guaranteed with Murrelektronik components.
Technische data
Technical Data
| Mating cycles | min. 500 |
|---|---|
| Locking of ports | Single locking lever |
| Protection (housing) | IP65 inserted and tightened (EN 60529), with gland |
General data
| Temperature range | -40...+100 °C |
|---|---|
| Material housing | Aluminum die-cast |
| Housing type | Hood |
| Threaded hole | M20 |
| Size | B10 |
| Cable outlet | laterally |
| Locking material | Steel (galvanized) |
| Climatic category | 40/100/21 (EN 60068-1) |
| Material housing surface | powder-coated |

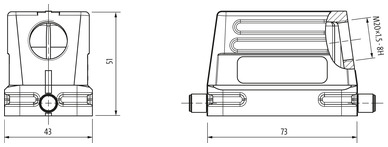

| Dimensions H×W×D | 51×43×73 mm |
classifications
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-7.0 | 27440209 |
| ECLASS-8.0 | 27440209 |
| ECLASS-9.0 | 27440209 |
| ECLASS-10.1 | 27440202 |
| ECLASS-11.1 | 27440202 |
| ECLASS-12.0 | 27440202 |
| ETIM-5.0 | EC000437 |
Commerciële gegevens
| Douane tarief nummer | 85389099 |
|---|---|
| GTIN | 4048879646420 |
| Verpakkingseenheid | 1 |
