MASI67 INSTALLATION TECHNOLOGY 55037
Product kan afwijken van illustratie

MASI67 INSTALLATION TECHNOLOGY

Converter 2x profile cable to M12 female

Artnr: 55037
Gewicht: 0.15 kg
Land van oorsprong:  DE
Beschikbaar
Stel een vraag
 dit product aanbevelen
Productvergelijking
Prijs per stuk:
Downloaden naar de databox Downloaden naar Easy-Import-Export

Beschrijving

MASI67 converter
2× profile cable to M12 (female)
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate

Electrical data | Supply
Operating voltage DC max. 36 V
Total current max. 4 A
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Insulation strength ASI/Power 200 V
Mechanical data | Mounting data
Mounting method screwed, geschnappt
Suitable for mounting type mounting rail, (EN 60715)
Height 90 mm
Width 74 mm
Depth 30,5 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 60 °C
Storage temperature min. -40 °C
Storage temperature max. 80 °C
Conformities, approvals, certificates
Product standard EN 60664-1

Connection types

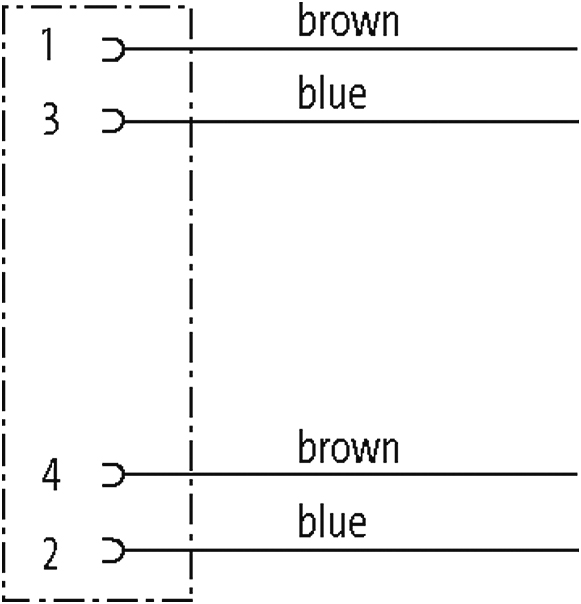

Connection type 1 Bus Out
Connection type 1
Family construction form M12
Gender female
Color contact carrier black
Coding A
No. of poles 5
PIN 1 AS-i +
PIN 2 0 V
PIN 3 AS-i -
PIN 4 24 V DC
PIN 5 n.c.

ECLASS-6.0 27400209
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440111
ECLASS-11.1 27440111
ECLASS-12.0 27440111
ETIM-5.0 EC001583
Douane tarief nummer 85369010
GTIN 4048879052146
Verpakkingseenheid 1


Gegevens Over Artikel:
  • Product-PDF
  • Approval: UL Registered CA 55037_E201820-NRAQ8_urc_z_b.pdf (B)
  • Approval: UL Registered US 55037_E201820-NRAQ2_ur_z_b.pdf (B)
  • Construction files: DXF 55037_dxf_x_a.zip (A)
  • Construction files: P8 55033_p8_2_50.zip (50)
  • Construction files: P8 55037_p8_2_50.zip (50)
  • Construction files: STP 55037_stp_x_a.zip (A)
  • Document: Installation guide 55037_ina_2_16.pdf (16)
  • Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf (02)
  • Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA 55037_02-10.22_uk_z_a.pdf (A)
  • Information: EU declaration of conformity 55037_02-10.22_ce_z_a.pdf (A)
