Product discontinued until 31.10.2018, replaced by: 56471
Gateway Profibus-DP/AS-i, 1 Master, Spec. 3.0, IP20
| Artnr: | 56465 |
| Gewicht: | 0.518 kg |
| Land van oorsprong: | DE |
Leveringsdatum op aanvraag
Beschrijving
Gateway-Singlemaster
via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm²
AS-Interface/PROFIBUS DP
Specification 3.0
Current manuals, GSD/type data can be downloaded at: www.murrelektronik.com
Other gateways on request.
via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm²
AS-Interface/PROFIBUS DP
Specification 3.0
Current manuals, GSD/type data can be downloaded at: www.murrelektronik.com
Other gateways on request.
Technische data
Connections
| Fieldbus | SUB-D9 |
|---|
AS-Interface
| Operating current | max. 200 mA (AS-Interface) |
|---|---|
| Serial interface/diagnostic | RJ45/Ethernet |
| Cycle time | 150 µs × (number of slaves + 2) |
| Bus connection | via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm² |
| No. of slaves | max. 62 |
| Specification | 3.0 |
| Operating voltage | 30 V DC |
General data

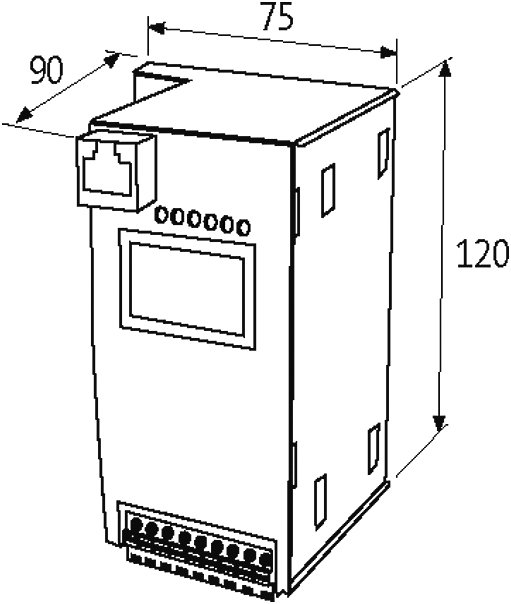

| Standards | EN 50295, EN 61000-6-2, EN 61000-6-4 |
|---|---|
| Mounting method | DIN-rail mountable (EN 60715) |
| Temperature range | 0...+55 °C (storage temperature -25...+85 °C) |
| Test isolation voltage | min. 500 V |
| Protection | IP20 |
| Dimensions H×W×D | 120×85×83 mm |
PROFIBUS
| Addressing | via buttons on the gateway or PROFIBUS DP addresses 1...126 adjustable (default 3) |
|---|
Fieldbus
| Buttons | 4 (mode/set/OK/ESC) |
|---|---|
| Transfer rate | 9.6...12 000 kbps, automatic detection |
classifications
| ECLASS-6.0 | 27242208 |
|---|---|
| ECLASS-7.0 | 27242208 |
| ECLASS-8.0 | 27242208 |
| ECLASS-9.0 | 27242208 |
| ETIM-5.0 | EC001604 |
Commerciële gegevens
| Douane tarief nummer | 85176200 |
|---|---|
| GTIN | 4048879495684 |
| Verpakkingseenheid | 1 |
