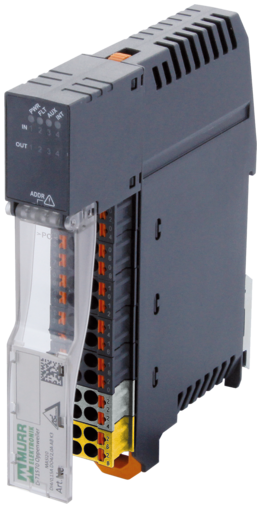

MASI20 I/O MODULE K3
4 digital inputs, 4 digital, passive safety outputs
| Artnr: | 56475 |
| Gewicht: | 0.11 kg |
| Land van oorsprong: | SG |
Beschikbaar
Beschrijving
Digital inputs/outputs
DI4 - 0.15 A DO4 - 2 A (K3)
Safe outputs (Safety)
passive safety
Output groups up to PLd (EN ISO 13849-1) can be switched off via safety relays
Standard-Slave
Protection IP20
Current manuals can be downloaded at: www.murrelektronik.com
24 V DC (20...30 V DC) EN 61131-2 by additional supply, safely separated from input supply
DI4 - 0.15 A DO4 - 2 A (K3)
Safe outputs (Safety)
passive safety
Output groups up to PLd (EN ISO 13849-1) can be switched off via safety relays
Standard-Slave
Protection IP20
Current manuals can be downloaded at: www.murrelektronik.com
24 V DC (20...30 V DC) EN 61131-2 by additional supply, safely separated from input supply
Technische data
Electrical data | Supply
| Operating voltage external DC min. | 12 V |
|---|---|
| Operating voltage external DC max. | 30 V |
| Bus voltage AS-Interface DC min. | 26,5 V |
| Bus voltage AS-Interface DC max. | 31,6 V |
| Current consumption AS-i port max. | 190 mA |
| Total current max. | 4 A |
| module supply | Via system connection or by additional feed-in |
Electrical data | Input
| Overload resistant | yes |
|---|---|
| Short-circuit protected | yes |
| Type input | PNP, for 3-wire sensors or mechanical switches |
| Input current max. | 5,6 mA |
| Current carrying capacity max. | 0,15 A |
Electrical data | Output
| Switch off time in case of short circuit | 20 ms |
|---|---|
| Overload resistant | yes |
| Short-circuit protected | yes |
| Output current per pin max. | 2 A |
Industrial communication | Bus data
| Address setting type | Addressing socket, Master |
|---|---|
| Slave address range | (0), 1 ... |
Industrial communication | AS-Interface
| Profile (IO.ID.ID2) | S-7.0.E |
|---|
Diagnostics
| Diagnostic | No voltage |
|---|---|
| Diagnostic via LED | per module |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
|---|
Mechanical data | Mounting data
| Mounting method | geschnappt |
|---|---|
| Suitable for mounting type | mounting rail, (EN 60715) |
| Height | 125 mm |
| Width | 19 mm |
| Depth | 99 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 70 °C |
| Derating from | 60 °C |
| Storage temperature min. | -25 °C |
| Storage temperature max. | 85 °C |
Aansluitgegevens
Connection types
| Connection type 1 | Asi Bus |
|---|---|
| Connection type 2 | I / O |
| Connection type 3 | Power |
Connection type 1
| Connection | Spring clamp terminals FK |
|---|---|
| Family construction form | terminal |
| Gender | female |
| Color contact carrier | yellow |
| No. of poles | 4 |
| PIN 25 | AS-i + |
| PIN 26 | AS-i + |
| PIN 27 | AS-i - |
| PIN 28 | AS-i - |
Connection type 2
| Connection | Spring clamp terminals FK |
|---|---|
| Family construction form | terminal |
| Gender | female |
| Color contact carrier | black |
| No. of poles | 20 |
| PIN 1 | I 1 |
| PIN 2 | I 2 |
| PIN 3 | I 3 |
| PIN 4 | I 4 |
| PIN 5 | I - |
| PIN 6 | I - |
| PIN 7 | I - |
| PIN 8 | I - |
| PIN 9 | I + |
| PIN 10 | I + |
| PIN 11 | I + |
| PIN 12 | I + |
| PIN 13 | O 1 |
| PIN 14 | O 2 |
| PIN 15 | O 3 |
| PIN 16 | O 4 |
| PIN 17 | O - |
| PIN 18 | O - |
| PIN 19 | O - |
| PIN 20 | O - |
Connection type 3
| Connection | Spring clamp terminals FK |
|---|---|
| Family construction form | terminal |
| Gender | female |
| Color contact carrier | gray |
| No. of poles | 4 |
| PIN 21 | AUX + |
| PIN 22 | AUX + |
| PIN 23 | AUX - |
| PIN 24 | AUX - |
Commerciële gegevens
| ECLASS-6.0 | 27242604 |
|---|---|
| ECLASS-6.1 | 27242604 |
| ECLASS-7.0 | 27242604 |
| ECLASS-8.0 | 27242604 |
| ECLASS-9.0 | 27242604 |
| ECLASS-10.1 | 27242604 |
| ECLASS-11.1 | 27242604 |
| ECLASS-12.0 | 27242604 |
| ETIM-5.0 | EC001599 |
| Douane tarief nummer | 85176200 |
| GTIN | 4048879705257 |
| Verpakkingseenheid | 1 |
