MVP12, 8XM12, 5POLE, PLUG. CAP SPT
Plug. cap, field-wireable via spring terminals
| Artnr: | 27769 |
| Gewicht: | 0.193 kg |
| Land van oorsprong: | DE |
Beschikbaar
Beschrijving
8-way, 5-pole
Spring clamp plug-in terminals
Potential separation as option
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technische data
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) |
| Connection | Spring clamp plug-in terminals: max. 1.5 mm² (AWG 16) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Housing | Plastic, flame retardant |
| Signal per port | 2 |
| Total current | max. 2× 8 A |
Contact Layout
| PIN 1 | (+) |
|---|---|
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| LED (green): Power / LED (yellow): (S1/S2) |
General data
| Temperature range | -20...+80 °C |
|---|---|

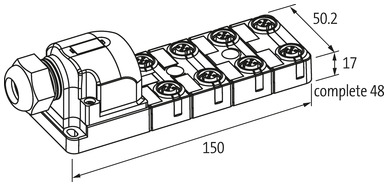

| Dimensions H×W×D | 150×50.2×17 mm |
classifications
| ECLASS-6.0 | 27279219 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440111 |
| ECLASS-11.1 | 27440111 |
| ECLASS-12.0 | 27440111 |
| ETIM-5.0 | EC002585 |
Commerciële gegevens
| Douane tarief nummer | 85369010 |
|---|---|
| GTIN | 4048879063340 |
| Verpakkingseenheid | 1 |
