MVP12, 6XM12, 5POLE, PLUGGABLE CABLE
Product kan afwijken van illustratie

MVP12, 6XM12, 5POLE, PLUGGABLE CABLE

10.0m PUR/PVC 12x0,34+5x0,75
Artnr: 27077
Gewicht: 2.603 kg
  In productie
 Productvergelijking
Prijs per stuk:

Ook interessant voor U

6-way, 5-pole
PUR/PVC
10.0 m
potentially separated
with LED for digital PNP-signals 24 V DC
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.

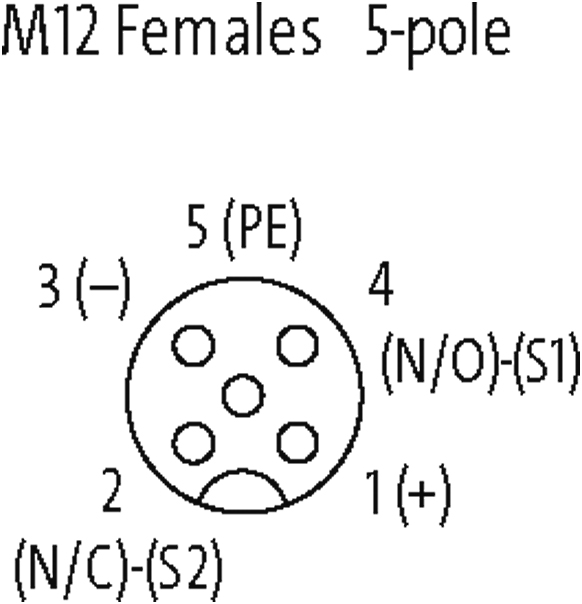

Contact Layout
PIN 1 (+)
PIN 2 (NC)/(S2)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED display LED (green): Power / LED (yellow): (S1/S2)
Cables
Cable number 392
No./diameter of wires 12× 0.34 + 3× 0.75 mm²
Construction (core) PVC
Wire isolation PVC (yebr, rd, grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, br, br, bl, bl, gnye)
C-track properties 1.5 Mio.
Jacket Color gray
Material (jacket) PUR/PVC
Outer Ø 10.0 mm ±5%
Bend radius (fixed) 7.5× outer Ø
Bend radius (moving) 12× outer Ø
Temperature range (fixed) -30...+80 °C
Temperature range (mobile) -5...+60 °C
Technical Data
Operating voltage 24 V DC ±25%
Housing Plastic, flame retardant
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Material PBT
Signal per port 2
Operating current per contact max. 4 A
Total current max. 2× 8 A
Locking of ports Screw thread (M12×1 mm)
General data
Temperature range -20...+80 °C
Dimensions H×W×D 125×50.2×17 mm
Commerciële gegevens
Douane tarief nummer 85444290
EAN 4048879064255
eClass 27279219
Land van oorsprong CZ
Verpakkingseenheid 1

Gegevens Over Artikel:
  • Download Datablad
  • Download Approvals and certificates 27077_E201820_NRAQ7_ulc_z_a.pdf
  • Download Approvals and certificates 27077_E201820_NRAQ_ul_z_a.pdf
  • Download Approvals and certificates 27077_11-06.17_ce_z_a.pdf
  • Download China RoHS-informatie EPUP-20_CHR_x_1.pdf
  • Download Drawing Files 27774_stp_x_a.zip
  • Download Drawing Files 27774_dxf_x_a.zip
cURus
cULus
