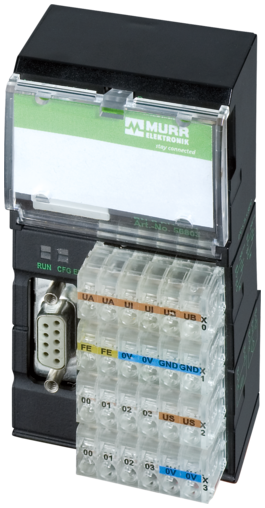

IMPACT20 PROFIBUS, DIGITAL INPUT MODULE  56900
Product kan afwijken van illustratie

IMPACT20 PROFIBUS, DIGITAL INPUT MODULE

16 digital inputs
Artnr: 56900
Gewicht: 0.19 kg
Land van oorsprong:  DE
Niet beschikbaar
 Productvergelijking

Beschrijving

Digital inputs
DI16
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Bus technologies

Electrical data | Supply
Norm operating voltage EN 61131-2
Operating voltage US DC 24 V
Operating voltage DC 24 V
Total current UA max. 12 A
Electrical data | Input
Overload resistant yes
Short-circuit protected yes
Type input PNP, for 3-wire sensors or mechanical switches
Current carrying capacity max. 0,7 A
Industrial communication | Bus data
Address range min. 3
Address range max. 99
Address setting type Rotary switch
Diagnostics
Diagnostic No voltage, Under voltage
Diagnostic via BUS per module
Diagnostic via LED per module
Short circuit diagnosis yes
LED display Ethernet connection/data traffic
Overload diagnosis yes
Installation
Connection cross section max. 2,5 mm²
Device protection | Electrical
Degree of protection (EN IEC 60529) IP20
Mechanical data | Mounting data
Mounting method geschnappt
Suitable for mounting type (EN 60715), mounting rail
Height 117 mm
Width 56 mm
Depth 47 mm
Environmental characteristics | Climatic
Operating temperature min. 0 °C
Operating temperature max. 55 °C
Storage temperature min. -20 °C
Storage temperature max. 70 °C
Conformities, approvals, certificates
Product standard EN 61131-2

Connection types
Connection type 1 Bus In
Connection type 2 X0
Connection type 3 X1
Connection type 4 X2
Connection type 5 X3
Connection type 1
Family construction form D-Sub
Gender female
Color contact carrier white
No. of poles 9
Connection type 2
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 6
Connection type 3
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 6
Connection type 4
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 6
Connection type 5
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 6

ECLASS-6.0 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ETIM-5.0 EC001599
Douane tarief nummer 85389099
GTIN 4048879048101
