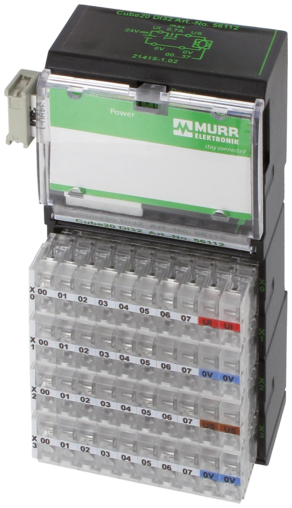

CUBE20 DIGITAL INPUT MODULE

32 digital inputs
Artnr: 56112
Gewicht: 0.243 kg
Land van oorsprong:  CZ
Niet op voorraad - Leveringsdatum op aanvraag
 Productvergelijking
Prijs per stuk:

Beschrijving

Expansion module
DI32 - (E)
Certificates as JSON - filtered

General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range 0...+55 °C (storage temperature -20...+85 °C)
Protection IP20
Dimensions H×W×D 117×56×47 mm
Input
Sensor supply US 24 V DC (EN 61131-2), max. 700 mA per module
Type PNP (EN 61131-2)
Galvanic isolation 500 V DC between inputs and internal communication
Input filter 1 ms
Internal communication
Current consumption max. 25 mA
Module supply via system connection
Connections
Fieldbus Ribbon cable connection
Sensor-system/actuator supply 8× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
I/O ports 32× spring clamp plug-in terminals, max. 2.5 mm²
Article No. 56112
Diagnostic
Communication status via LED
Diagnostic via LED per module
Diagnostic via BUS per module and channel
Monitoring - under voltage yes
Monitoring - no voltage no
Short-circuit and overload yes

Douane tarief nummer 85176200
EAN 4048879049344
eClass 27242604
Verpakkingseenheid 1


Gegevens Over Artikel:
  • Download Datablad
  • Download Approval: UL Listed CA 56112_E201820_NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 56112_E201820-NRAQ_ul_z_b.pdf
  • Download Construction files: DXF 56112_dxf_x_a.zip
  • Download Construction files: P8 56112_p8_2_50.zip
  • Download Construction files: P8 56001_p8_2_50.zip
  • Download Construction files: STP 56112_stp_x_a.zip
  • Download Document: Installation guide 56112_ina_6_11.pdf
  • Download Document: User manual 56035_hdb_x_16.zip
  • Download Document: User manual 56030_hdb_x_13.zip
  • Download Document: User manual 56975_hdb_x_12.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 56112_946-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 56112_946-04.16_ce_z_c.pdf
  • Download Information: MTTF Report 56112_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
  • Download Software: Device driver Cube20_Beschriftung.xls
