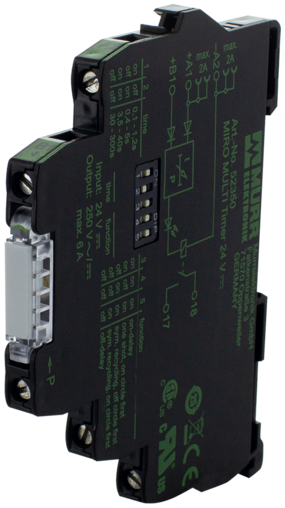

MIRO MULTI TIMER 24VDC-1S 52350
Product kan afwijken van illustratie

MIRO MULTI TIMER 24VDC-1S

MIRO 6.2 MULTI-TIMER 24VDC-1S

Artnr: 52350
Alternatieve artikelen:    6652350
Gewicht: 0.036 kg
Land van oorsprong:  CZ
Beschikbaar
Find similar Product
Stel een vraag
 dit product aanbevelen
Productvergelijking
Prijs per stuk:
Downloaden naar de databox Downloaden naar Easy-Import-Export

Beschrijving

Relay output
Impulse expansion: 0.1...300 s
Screw terminals
safe separation (EN 60947-1)
Certificate
Certificate
Certificate
Certificate

Electrical data | Input
Input voltage DC 24 V
Input voltage DC min. 20,4 V
Input voltage DC max. 26,4 V
Input current 20 mA
Input current DC max. 16 mA
Control voltage DC 24 V
Control voltage DC min. 20,4 V
Control voltage DC max. 26,4 V
Control current 5 mA
Electrical data | Output
Output voltage adjustable no
Output current max. 6 A
Switching frequency max. 10 Hz
Power rating AC max. 1500 VA
Power rating DC max. 120 W
Switching voltage AC max. 250 V
Switching voltage DC max. 250 V
Current switching DC 100 mA
Device protection
Condition lifetime load-dependent
Device protection | Electrical
Rated surge voltage 4 kV
Electrical lifetime 20000000 Cycles
Device protection | Mechanical
Mechanical endurance 20000000 Cycles
Mechanical data
Drop-out time max. 15 ms
Response time max. 10 ms
Bounce time max. 1,5 ms
Mechanical data | Material data
Material contact Ag Sn O2
Mechanical data | Mounting data
Mounting method geschnappt
Suitable for mounting type mounting rail, (EN 60715)
Height 91 mm
Width 6,2 mm
Depth 71 mm
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 60 °C

Connection type 1
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 1
PIN 1 + A 1
Connection type 2
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 1
PIN 1 18
Connection type 3
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 1
PIN 1 17
Connection type 4
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 1
PIN 1 + B 1
Connection type 5
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 1
PIN 1 - A 2

ECLASS-6.0 27210990
ECLASS-6.1 27371790
ECLASS-7.0 27371790
ECLASS-8.0 27371605
ECLASS-9.0 27371605
ECLASS-10.1 27371605
ECLASS-11.1 27371605
ECLASS-12.0 27371605
ETIM-5.0 EC001439
Douane tarief nummer 85364190
GTIN 4048879026956
Verpakkingseenheid 1


Gegevens Over Artikel:
  • Product-PDF
  • Approval: CSA CA 52350_080128-0-000_C3211-07_csa_z_d.pdf (D)
  • Approval: CSA US 52350_080128-0-000_C3211-87_csau_z_d.pdf (D)
  • Approval: UL Registered CA 52350_E140415-NKCR8_urc_z_b.pdf (B)
  • Approval: UL Registered US 52350_E140415-NKCR2_ur_z_b.pdf (B)
  • Construction files: P8 52350_p8_2_10.zip (10)
  • Information: Certificate of conformity Murrelektronik GmbH 16-12-23_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf (04)
  • Information: Certificate of conformity Murrelektronik GmbH 12-12-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 23-12-23_(1) California Prop65 No Warning_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA 52350_1425-04.16_uk_z_a.pdf (A)
  • Information: EU declaration of conformity 52350_1425-04.16_ce_z_d.pdf (D)
  • Information: MTTF Report 52350_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf (A)
