M12 female 0° A-cod. with cable
SABIX 8x0.25 gy 20m
| Artnr: | 7080-17041-R422000 |
| Gewicht: | 0.957 kg |
| Land van oorsprong: | DE |
Niet beschikbaar
Beschrijving
Female straight
M12, 8-pole
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Technische data
| Cable length | 20 m |
|---|
Technical Data
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 2 A |
| No. of poles | 8 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Material | PUR |
| Locking material | Zinc die casting, matte nickel plated |
| suitable for corrugated tube (internal Ø) | without |
| Compression gland | M12 (SW13) |
General data
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Mounting method | inserted, tightened |
| Pollution Degree | 3 |
| Stripping length (jacket) | 60 mm |
| Temperature range | -25...+85 °C, depending on cable quality |
Cable data
Cable
| Cable identification | R42 |
|---|---|
| Cable Type | Bahnkabel |
| Approval (cable) | DIN EN 45545-2, CE conform |
| Cable weight [g/m] | 47,3 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 78 Ω/km (20 °C) |
| Single wire Ø (core) | 0.15 mm |
| Construction (core) | 14× 0.15 mm (multi-strand wire class 5) |
| Diameter (core) | 8× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material wire isolation | Special Sabix |
| Wire-Ø incl. isolation | 1.15 mm ±5% |

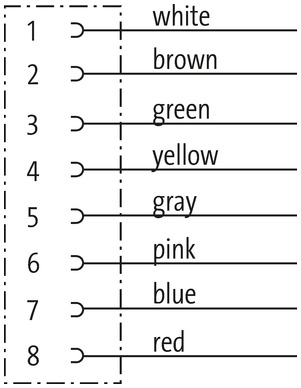

| Color/numbering of wires | br, wh, rd, bl, pk, gr, ye, gn |
| Stranding combination | 8 wires twisted around central filler |
| Material jacket | Special Sabix |
| Outer-Ø (jacket) | 5.2 mm ±5% |
| Color jacket | gray |
| Jacket Color | gray |
| Nominal voltage | 500 V |
| Test voltage | 1500 V AC |
| Current load capacity | according to DIN VDE 0891-1 |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -30...+90 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
classifications
| ECLASS-6.0 | 27061801 |
|---|---|
| ECLASS-7.0 | 27061801 |
| ECLASS-8.0 | 27061801 |
| ECLASS-9.0 | 27061801 |
| ECLASS-10.1 | 27060311 |
| ECLASS-11.1 | 27060311 |
| ECLASS-12.0 | 27060311 |
| ETIM-5.0 | EC001855 |
Commerciële gegevens
| Douane tarief nummer | 85444290 |
|---|---|
| GTIN | 4048879694971 |
| Verpakkingseenheid | 1 |
