M12 male duo 0° A-cod. screw terminal  7000-12801-0000000
Product kan afwijken van illustratie

M12 male duo 0° A-cod. screw terminal

5-pol., max. 0,75mm², 2,1 - 3mm, 4 - 5mm
Artnr: 7000-12801-0000000
Alternatieve artikelen:    7000-12721-0000000
Gewicht: 0.025 kg
Land van oorsprong:  HU
Beschikbaar
 Productvergelijking
Prijs per stuk:
Dowonloaden naar Easy-Import-Export

Beschrijving

Male straight
Y-connector M12, 5-pole
Screw terminals
Sealing range (cable Ø): 2.1...3/4...5 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

Technical Data
Operating voltage max. 125 V AC/DC
Operating current per contact max. 4 A
Connection cross section max. 0.75 mm²
Sealing range (cable Ø) 2.1...3/4...5 mm (2 cable entries)
Protection IP67 inserted and tightened (EN 60529)
General data
Temperature range -40...+85 °C

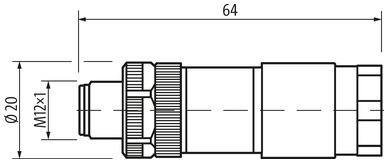

Dimensions H×W×D 63×20×20 mm

ECLASS-6.0 27279221
ECLASS-6.1 27260702
ECLASS-7.0 27440102
ECLASS-8.0 27440102
ECLASS-9.0 27440116
ECLASS-10.1 27440102
ECLASS-11.1 27440102
ECLASS-12.0 27440116
ETIM-5.0 EC002635
Douane tarief nummer 85366990
EAN 4048879201612
Verpakkingseenheid 1


Gegevens Over Artikel:
  • Download Product-PDF
  • Download Construction files: STP 7000-12801_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
