Product kan afwijken van illustratie

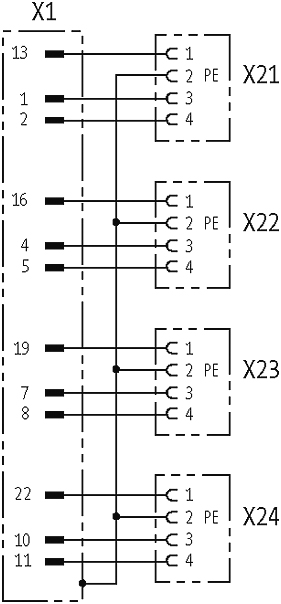

POWER DISTRIBUTOR PD4 7/8'' 4 POLE
24+E male to 4 x 7/8'' 4-pole female
| Artnr: | 27680 |
| Gewicht: | 0.635 kg |
| Land van oorsprong: | CZ |
Niet beschikbaar
Beschrijving
Industry male plug 24+PE
to 4× 7/8" UNF female
4-pole
to 4× 7/8" UNF female
4-pole
Technische data
Technical Data
| Operating voltage | 50 V AC/120 V DC (SELV) |
|---|---|
| Operating current per contact | max. 9 A |
| Locking of ports | 2-hand fixing (2 clamps) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Housing | Aluminum die-cast (powder-coated) |
General data
| Temperature range | -30...+85 °C |
|---|---|
| Dimensions H×W×D | 165×70×100 mm |
| Product article number of manufacturer | 27680 |
|---|
Commerciële gegevens
| ECLASS-6.0 | 27279219 |
|---|---|
| ECLASS-6.1 | 27142601 |
| ECLASS-7.0 | 27142601 |
| ECLASS-8.0 | 27142601 |
| ECLASS-9.0 | 27142601 |
| ECLASS-10.1 | 27142601 |
| ECLASS-11.1 | 27142606 |
| ECLASS-12.0 | 27142606 |
| ETIM-5.0 | EC002585 |
| Douane tarief nummer | 85369010 |
| EAN | 4048879063456 |
| Verpakkingseenheid | 1 |
