B16 Surface mounted h., IP68

Screw locking, side entry M40
Art.No.: 70MH-GSFNS-B01E200
Weight: 1.012 kg
Country of origin:  CZ
Contact Us for Availability
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

B16
Surface mounted housing
Screw locking
IP68
Technical data will be only guaranteed with Murrelektronik components.

Technical Data
Mating cycles min. 500
Locking of ports Screw locking
Protection (housing) IP68 inserted and tightened (EN 60529), with gland
General data
Material gasket Silicon
Temperature range -40...+125 °C
Material housing Aluminum die-cast
Housing type Surface mounted housing
Threaded hole M40
Size B16
Cable outlet laterally
Locking material Stainless steel
Climatic category 40/125/21
Material housing surface powder-coated

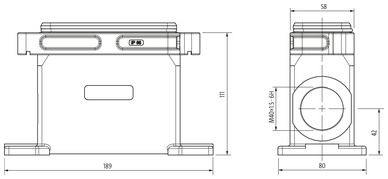

Dimensions H×W×D 111×80×189 mm

ECLASS-6.0 27143424
ECLASS-7.0 27440209
ECLASS-8.0 27440209
ECLASS-9.0 27440209
ECLASS-10.1 27440202
ECLASS-11.1 27440202
ECLASS-12.0 27440202
ETIM-5.0 EC000437

customs tariff number 85389099
GTIN 4048879647410
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Construction files: DXF 70MH-GSFNS-B01E200_dxf_x_a.zip
  • Download Construction files: STP 70MH-GSFNS-B01E200_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
