MASI67 INSTALLATION TECHNOLOGY

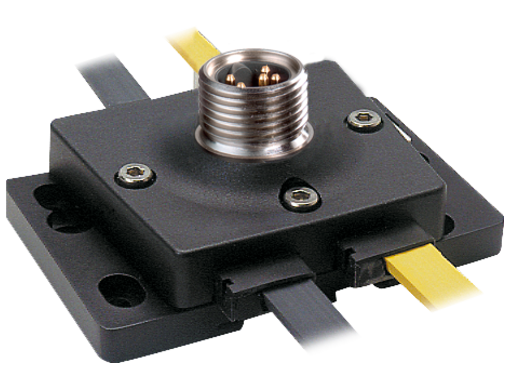

Converter 2x profile cable to 7/8'' male
Art.No.: 55036
Weight: 0.162 kg
Country of origin:  DE
Out of Stock - Contact Us for Availability
 Product Comparison
List price per piece:

Description

MASI67 converter
2× profile cable to 7/8" (male)
Connection cables are in the online shop under "Connection Technology".
Certificates as JSON - filtered

Technical Data
Operating voltage max. 36 V DC
Total current max. 8 A
General data
Mounting method DIN-rail mountable (EN 60715) or screw fixing
Temperature range -20...+60 °C (storage temperature -40...+80 °C)
Test isolation voltage AS-Interface/Power 200 V, (EN 60664-1)
Protection IP67
Dimensions H×W×D 90×74×46 mm

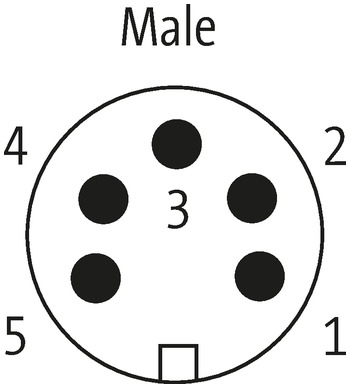

Contact Layout
PIN 1 AS-Interface + (brown)
PIN 2 AS-Interface - (blue)
PIN 3 n.c.
PIN 4 +24 V (brown)
PIN 5 0 V (blue)
Product article number of manufacturer 55036

ECLASS-6.0 27400209
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440111
ECLASS-11.1 27440111
ECLASS-12.0 27440111
ETIM-5.0 EC001583
customs tariff number 85369010
EAN 4048879052153
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Registered CA 55036_E201820-NRAQ8_urc_z_b.pdf
  • Download Approval: UL Registered US 55036_E201820-NRAQ2_ur_z_b.pdf
  • Download Construction files: DXF 55036_dxf_x_a.zip
  • Download Construction files: P8 55036_p8_2_50.zip
  • Download Construction files: P8 55033_p8_2_50.zip
  • Download Construction files: STP 55036_stp_x_a.zip
  • Download Document: Installation guide 55036_ina_2_16.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11.20_(1) RoHS&REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 18-12.20_(5) China RoHS 2 50EEP_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 55036_02-10.22_uk_z_a.pdf
  • Download Information: EU declaration of conformity 55036_02-10.22_ce_z_a.pdf
