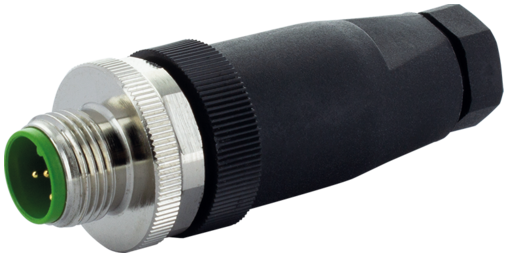

M12 male 0° A-cod. screw terminal
5-pol., max. 0,75mm², 4 - 6mm
| Art.No.: | 7000-12722-0000000 |
| Alternative product: | 7000-12721-0000000 |
| Weight: | 0.023 kg |
| Country of origin: | CN |
Available
Description
Male straight
M12, 5-pole
Screw terminals
Sealing range (cable Ø): 4...6 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
M12, 5-pole
Screw terminals
Sealing range (cable Ø): 4...6 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | max. 60 V |
|---|---|
| Operating current per contact | max. 4 A |
| No. of poles | 5-pole |
| Coding | A-coded |
| Connection cross section | max. 0.75 mm² |
| Sealing range (cable Ø) | 4...6 mm |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Copper alloy |
| Compression gland | M12 (0.6 Nm, SW18) |
| Isolation resistance | ≥ 100 MΩ |
| Contact resistance | ≤ 8 mΩ |
| Over voltage category | II |
General data
| Material contact | Copper alloy |
|---|---|
| Material contact surface | gold plated |
| Pollution Degree | 3 |
| Temperature range | -40...+85 °C |
| Material housing | PBT GF |
| Connection | Screw terminal |
Commercial data
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440116 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85366990 |
| EAN | 4048879833905 |
| Packaging unit | 1 |
