M12 male 0° A-cod. IDC
4-pol., 0.25 - 0.5mm², 4 - 5,1mm
| Art.No.: | 7000-12481-0000000 |
| Alternative product: | 7000-12701-0000000 |
| Weight: | 0.02 kg |
| Country of origin: | DE |
Out of Stock - Contact Us for Availability
Description
Male straight
M12, 4-pole
IDC terminals
Connection cross section: 0.25...0.5 mm²
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
The resistance to aggressive media should be individually tested for your application. Further details on request.
M12, 4-pole
IDC terminals
Connection cross section: 0.25...0.5 mm²
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | max. 32 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Material group | IEC 60664-1, category III |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Connection cross section | 0.25...0.5 mm² (conductor diameter min. 0.1 mm) |
| Sealing range (cable Ø) | 4...5.1 mm |
| Protection | IP67 mounted and tightened |
| Outer wire Ø | 1.2...1.6 mm |
General data
| Temperature range | -25...+85 °C |
|---|---|

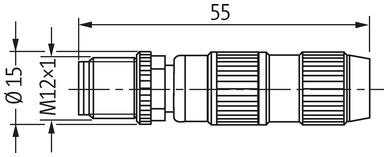

| Dimensions H×W×D | 55×15×15 mm |
Commercial data
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440116 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC002635 |
| customs tariff number | 85366990 |
| EAN | 4048879201841 |
| Packaging unit | 1 |
