Not-Aus/Not-Halt-Taste mit 2 zwangsöffnenden  69002
Abbildung ähnlich

Not-Aus/Not-Halt-Taste mit 2 zwangsöffnenden

kontakten im IP65 Gehäuse
ArtNr.: 69002
Gewicht: 0.114 kg
Ursprungsland:  DE
Verfügbar
 Artikelvergleich
Listenpreis pro Stück:
Download in Easy-Import-Export

Beschreibung

E-Stop 42 2NC L M12(8)
mit M12-Anschluss
8-polig
Not-Aus/Not-Halt-Taste
2 Öffner (zwangsöffnend)
beleuchtbarer LED-Ring
Zertifikat
Zertifikat
Zertifikat

Technische Daten
Betriebsspannung 1...36 V DC (UR: 30 V DC)
Betriebsstrom 1.5 A
Prellzeit max. 10 ms
LED-Beleuchtung max. 30 V AC/DC typ. 4 mA (24 V DC)
Allgemeine Daten
Befestigungsart mit rückseitigem Clip
Material Kontakt Ag Ni
Temperaturbereich -25...+70 °C (Lagertemperatur -25...+85 °C)
Lambda (d) 20% (N/C)
B10d 250 000
Lebensdauer mech./ elektr. 50 000 Betätigungen, last-/temperaturabhängig
Schutzart IP65
Anschlussart M12 (8-polig)
Abmessungen H×B×T 52×124×42 mm

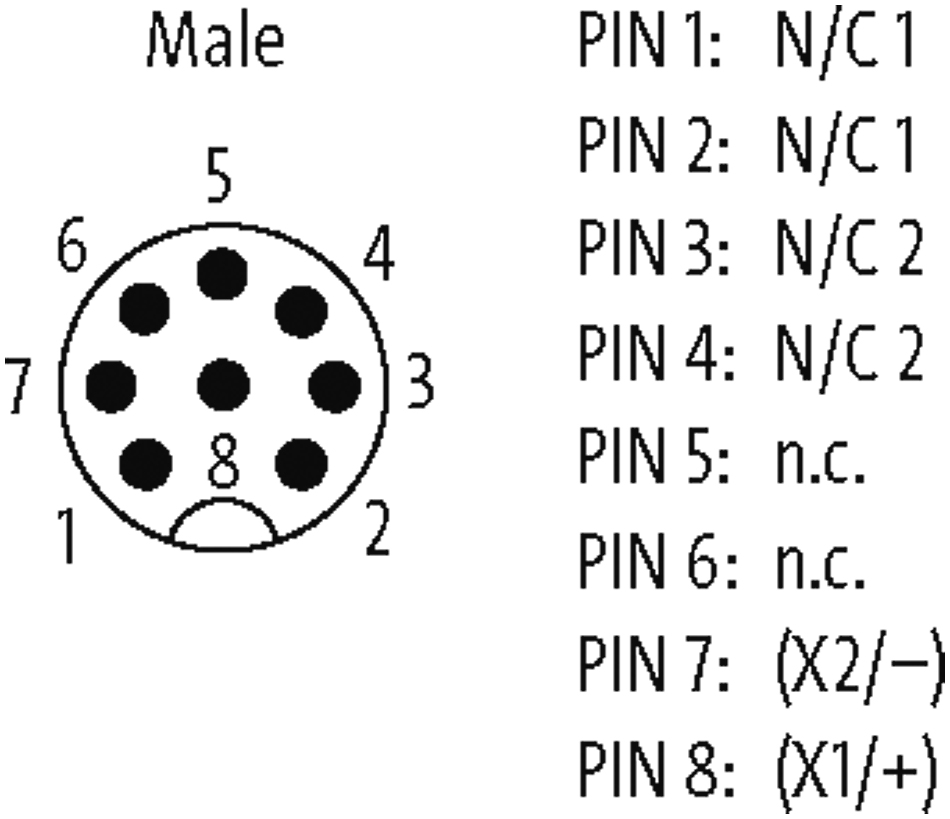

Kontaktbelegung
PIN 1 N/C 1
PIN 2 N/C 1
PIN 3 N/C 2
PIN 4 N/C 2
PIN 5 n.c.
PIN 6 n.c.
PIN 7 (X2/-)
PIN 8 (X1/+)

ECLASS-6.0 27371244
ECLASS-6.1 27371244
ECLASS-7.0 27371244
ECLASS-8.0 27371244
ECLASS-9.0 27371244
ECLASS-10.1 27371244
ECLASS-11.1 27371244
ECLASS-12.0 27371244
ETIM-5.0 EC002034
EAN 4048879594219
Verpackungseinheit 1
Zolltarifnummer 85365080


Daten zum Artikel:
  • Download Produkt-PDF
  • Download Dokumentation: Installationsanleitung 69000_ina_2_12.zip
  • Download Information: EU Konformitätserkl. 69002_06-03.22_ce_z_c.pdf
  • Download Information: Konformitätserklärung Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Download Information: Konformitätserklärung Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Konformitätserklärung UKCA 69002_06-03.22_uk_z_a.pdf
  • Download Information: Sicherheitskennzahlen 69000_SYSTEMA_TB9_x_22.zip
  • Download Konstruktionsdateien: DXF 69002_dxf_x_a.zip
  • Download Konstruktionsdateien: P8 69002_p8_2_51.zip
  • Download Konstruktionsdateien: STP 69002_stp_x_a.zip
  • Download Zertifikat: TÜV  69002_B0318910009-09.02.2025_tuev_z_c.pdf
  • Download Zulassung: UL Registered US 69002_E479949-NISD2_ur_z_b.pdf
